HS360D PLUS

Digital volumetric flow-meters with nutating disk system. Used to measure

diesel oil and other liquids compatibles with the executive materials, except of

the flammable liquids. The head turns degree by degree in order to facilitate

the reading in any position of the instrument.

This type included data exit RS232 – NPN (100 pulse/litres)

The flow-meters HS360DPLUS, can be converted from a digital flow-meters

to a mechanical flow meters HS360M (3/4 digits).

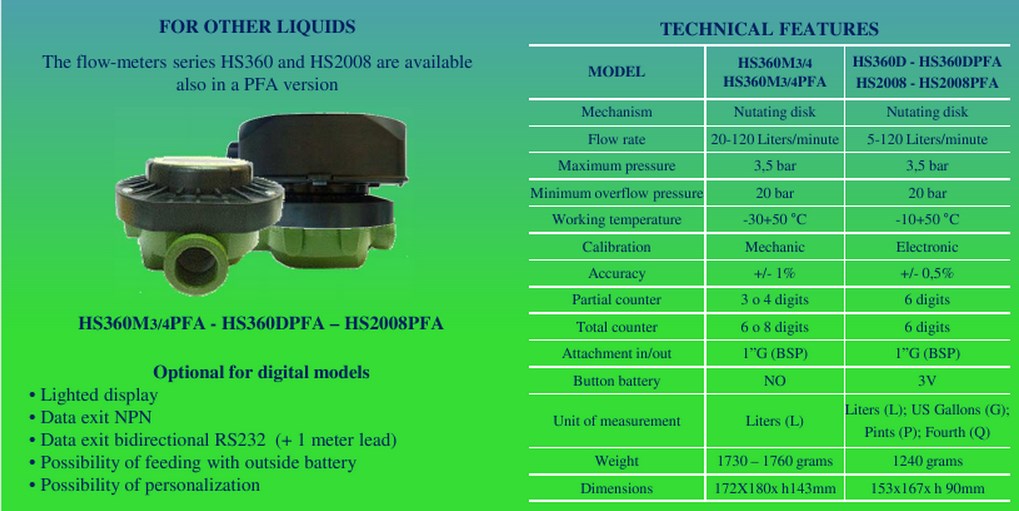

 TECHNICAL DATA SHEET Description Type HS360D HS 360D PLUS Partial counter 6 digits 6 digits Total counter 6 digits 6 digits Weight 1.2 Kg 1.25 Kg Pulse - 100 pulse/L/G/Q/P Type of output data - NPN – RS232 Mechanism Nutating Disk Unit of measure L (liters) G (US gallons) Q (Fourth) P (Pints) Flowmeter L/min – G/min – Q/min – P/min Flow rate L/min. 5-120 Operating Pressure (max) 3.5 bar Burst pressure (min) 20 bar OperatingTemperature (range) -10+50°C Accuracy after calibration Repeatability (typical ) -/+ 0.5% / 0.3% Connections 1”G (BSP) Battery 3V Dimension 172 x 180 x h 90 mm Materials in contact with the liquid Alluminium, Pom SV , Pom , NdFeB
